References a snap. More...

#include <SketchUpAPI/model/snap.h>

Related Functions
(Note that these are not member functions.)
SUEntityRef	SUSnapToEntity (SUSnapRef snap)
	Converts from an SUSnapRef to an SUEntityRef. This is essentially an upcast operation. More...

SUSnapRef	SUSnapFromEntity (SUEntityRef entity)
	Converts from an SUEntityRef to an SUSnapRef. This is essentially a downcast operation so the given entity must be convertible to an SUSnapRef. More...

SUDrawingElementRef	SUSnapToDrawingElement (SUSnapRef snap)
	Converts from an SUSnapRef to an SUDrawingElementRef. This is essentially an upcast operation. More...

SUSnapRef	SUSnapFromDrawingElement (SUDrawingElementRef drawing_elem)
	Converts from an SUDrawingElementRef to an SUSnapRef. This is essentially a downcast operation so the given element must be convertible to an SUSnapRef. More...

enum SUResult	SUSnapCreate (SUSnapRef snap, const struct SUPoint3D position, const struct SUVector3D direction, const struct SUVector3D *up)
	Creates a snap at the given position and orientation. More...

enum SUResult	SUSnapRelease (SUSnapRef *snap)
	Releases a snap object and its associated resources. More...

enum SUResult	SUSnapGetPosition (SUSnapRef snap, struct SUPoint3D *position)
	Retrieves the position of a snap. More...

enum SUResult	SUSnapGetDirection (SUSnapRef snap, struct SUVector3D *direction)
	Retrieves the orientation of a snap. More...

enum SUResult	SUSnapGetUp (SUSnapRef snap, struct SUVector3D *up)
	Retrieves the up vector of a snap. More...

enum SUResult	SUSnapSet (SUSnapRef snap, const struct SUPoint3D position, const struct SUVector3D direction, const struct SUVector3D up)
	Sets the position, direction and up vector of the snap. More...

Related Functions inherited from SUDrawingElementRef
SUEntityRef	SUDrawingElementToEntity (SUDrawingElementRef elem)
	Converts from an SUDrawingElementRef to an SUEntityRef. This is essentially an upcast operation. More...

SUDrawingElementRef	SUDrawingElementFromEntity (SUEntityRef entity)
	Converts from an SUEntityRef to an SUDrawingElementRef. This is essentially a downcast operation so the given entity must be convertible to a drawing element. More...

enum SURefType	SUDrawingElementGetType (SUDrawingElementRef elem)
	Returns the concrete type of the given drawing element. More...

enum SUResult	SUDrawingElementGetBoundingBox (SUDrawingElementRef elem, struct SUBoundingBox3D *bbox)
	Retrieves the bounding box of a drawing element. More...

enum SUResult	SUDrawingElementGetMaterial (SUDrawingElementRef elem, SUMaterialRef *material)
	Retrieves the material object of a drawing element. More...

enum SUResult	SUDrawingElementSetMaterial (SUDrawingElementRef elem, SUMaterialRef material)
	Sets the material of a drawing element. More...

enum SUResult	SUDrawingElementGetLayer (SUDrawingElementRef elem, SULayerRef *layer)
	Retrieves the layer object associated with a drawing element. More...

enum SUResult	SUDrawingElementSetLayer (SUDrawingElementRef elem, SULayerRef layer)
	Sets the layer object to be associated with a drawing element. More...

enum SUResult	SUDrawingElementSetHidden (SUDrawingElementRef elem, bool hide_flag)
	Sets the hide flag of a drawing element. More...

enum SUResult	SUDrawingElementGetHidden (SUDrawingElementRef elem, bool *hide_flag)
	Retrieves the hide flag of a drawing element. More...

enum SUResult	SUDrawingElementSetCastsShadows (SUDrawingElementRef elem, bool casts_shadows_flag)
	Sets the casts shadows flag of a drawing element. More...

enum SUResult	SUDrawingElementGetCastsShadows (SUDrawingElementRef elem, bool *casts_shadows_flag)
	Retrieves the casts shadows flag of a drawing element. More...

enum SUResult	SUDrawingElementSetReceivesShadows (SUDrawingElementRef elem, bool receives_shadows_flag)
	Sets the receives shadows flag of a drawing element. More...

enum SUResult	SUDrawingElementGetReceivesShadows (SUDrawingElementRef elem, bool *receives_shadows_flag)
	Retrieves the receives shadows flag of a drawing element. More...

Related Functions inherited from SUEntityRef
enum SURefType	SUEntityGetType (SUEntityRef entity)
	Returns the concrete type of the given entity. More...

enum SUResult	SUEntityGetID (SUEntityRef entity, int32_t *entity_id)
	Retrieves the id of the entity. More...

enum SUResult	SUEntityGetPersistentID (SUEntityRef entity, int64_t *entity_pid)
	Retrieves the persistent id of the entity. More...

enum SUResult	SUEntityGetNumAttributeDictionaries (SUEntityRef entity, size_t *count)
	Retrieves the number of attribute dictionaries of an entity. More...

enum SUResult	SUEntityGetAttributeDictionaries (SUEntityRef entity, size_t len, SUAttributeDictionaryRef dictionaries[], size_t *count)
	Retrieves the attribute dictionaries of an entity. More...

enum SUResult	SUEntityAddAttributeDictionary (SUEntityRef entity, SUAttributeDictionaryRef dictionary)
	Adds the attribute dictionary to an entity. The given dictionary object must not belong to another entity. In other words, each dictionary should be added to one entity only. More...

enum SUResult	SUEntityGetAttributeDictionary (SUEntityRef entity, const char name, SUAttributeDictionaryRef dictionary)
	Retrieves the attribute dictionary of an entity that has the given name. More...

enum SUResult	SUEntityGetModel (SUEntityRef entity, SUModelRef *model)
	Retrieves the model object associated with the entity. More...

enum SUResult	SUEntityGetParentEntities (SUEntityRef entity, SUEntitiesRef *entities)
	Retrieves the entities object which contains the entity. More...

Detailed Description

References a snap.

Since: SketchUp 2025.0, API 13.0

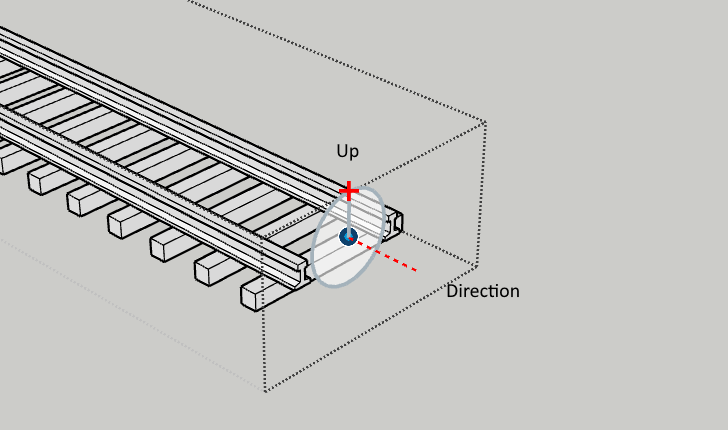

A Snap is a custom grip used by SketchUp's Move tool. Snaps can be added at strategic places such as connectors to help assembling objects.

SUSnapGetDirection() is the direction a snap is "pointing". This can be thought of as the normal direction of the snap. It can also be thought of as the direction you move an object when plugging it into another object, e.g. inserting a power coord.

SUSnapGetUp() controls the rotation around the Snap's axis.

When two objects are snapped together, the Snaps have opposite SUSnapGetDirection() vectors but matching SUSnapGetUp() vectors.

Friends And Related Function Documentation

enum SUResult SUSnapCreate	(	SUSnapRef *	snap,
		const struct SUPoint3D	position,
		const struct SUVector3D *	direction,
		const struct SUVector3D *	up
	)

Since: SketchUp 2025.0, API 13.0

Parameters

[out]	snap	The snap object created.
[in]	position	The position of the snap.
[in]	direction	The orientation of the snap. Pass `NULL` to use the default orientation.
[in]	up	The up vector controls the rotation around the `orientation` of the snap. Pass `NULL` to use the default up vector.

Returns

SU_ERROR_NONE on success
SU_ERROR_INVALID_ARGUMENT if direction an up are parallel.
SU_ERROR_NULL_POINTER_OUTPUT if snap is NULL
SU_ERROR_OVERWRITE_VALID if snap already refers to a valid object

SUSnapRef SUSnapFromDrawingElement ( SUDrawingElementRef drawing_elem )

Since: SketchUp 2025.0, API 13.0

Parameters

[in] drawing_elem The given element reference.

Returns

The converted SUSnapRef if the downcast operation succeeds
If not, the returned reference will be invalid

SUSnapRef SUSnapFromEntity ( SUEntityRef entity )

Since: SketchUp 2025.0, API 13.0

Parameters

[in] entity The given entity reference.

Returns

The converted SUSnapRef if the downcast operation succeeds
If not, the returned reference will be invalid

enum SUResult SUSnapGetDirection	(	SUSnapRef	snap,
		struct SUVector3D *	direction
	)

Since: SketchUp 2025.0, API 13.0

Parameters

[in]	snap	The snap object.
[out]	direction	The direction of the snap.

Returns

SU_ERROR_NONE on success
SU_ERROR_INVALID_INPUT if snap point is an invalid object
SU_ERROR_NULL_POINTER_OUTPUT if direction is NULL

enum SUResult SUSnapGetPosition	(	SUSnapRef	snap,
		struct SUPoint3D *	position
	)

Since: SketchUp 2025.0, API 13.0

Parameters

[in]	snap	The snap object.
[out]	position	The position retrieved.

Returns

SU_ERROR_NONE on success
SU_ERROR_INVALID_INPUT if snap point is an invalid object
SU_ERROR_NULL_POINTER_OUTPUT if position is NULL

enum SUResult SUSnapGetUp	(	SUSnapRef	snap,
		struct SUVector3D *	up
	)

Since: SketchUp 2025.0, API 13.0

Parameters

[in]	snap	The snap object.
[out]	up	The up vector of the snap.

Returns

SU_ERROR_NONE on success
SU_ERROR_INVALID_INPUT if snap point is an invalid object
SU_ERROR_NULL_POINTER_OUTPUT if up is NULL

enum SUResult SUSnapRelease ( SUSnapRef * snap )

Since: SketchUp 2025.0, API 13.0

Parameters

[in] snap The snap object.

Returns

SU_ERROR_NONE on success
SU_ERROR_NULL_POINTER_INPUT if snap points to an NULL
SU_ERROR_INVALID_INPUT if the snap object is not a valid object.

enum SUResult SUSnapSet	(	SUSnapRef	snap,
		const struct SUPoint3D	position,
		const struct SUVector3D *	direction,
		const struct SUVector3D *	up
	)

If only position is provided then direction and up remains unchanged.

Since: SketchUp 2025.0, API 13.0

Parameters

[in]	snap	The snap object.
[in]	position	The position of the snap.
[in]	direction	The orientation of the snap. Pass `NULL` to use the default orientation.
[in]	up	The up vector of the snap. Pass `NULL` to use the default up vector.

Returns

SU_ERROR_NONE on success
SU_ERROR_INVALID_ARGUMENT if direction an up are parallel.
SU_ERROR_NULL_POINTER_INPUT if snap is NULL

SUDrawingElementRef SUSnapToDrawingElement ( SUSnapRef snap )

Since: SketchUp 2025.0, API 13.0

Parameters

[in] snap The given snap reference.

Returns

The converted SUEntityRef if snap is a valid snap.
If not, the returned reference will be invalid.

SUEntityRef SUSnapToEntity ( SUSnapRef snap )

Since: SketchUp 2025.0, API 13.0

Parameters

[in] snap The given snap reference.

Returns

The converted SUEntityRef if snap is a valid snap.
If not, the returned reference will be invalid.

The documentation for this struct was generated from the following files:

SketchUpAPI/model/defs.h
SketchUpAPI/model/snap.h
